SGW

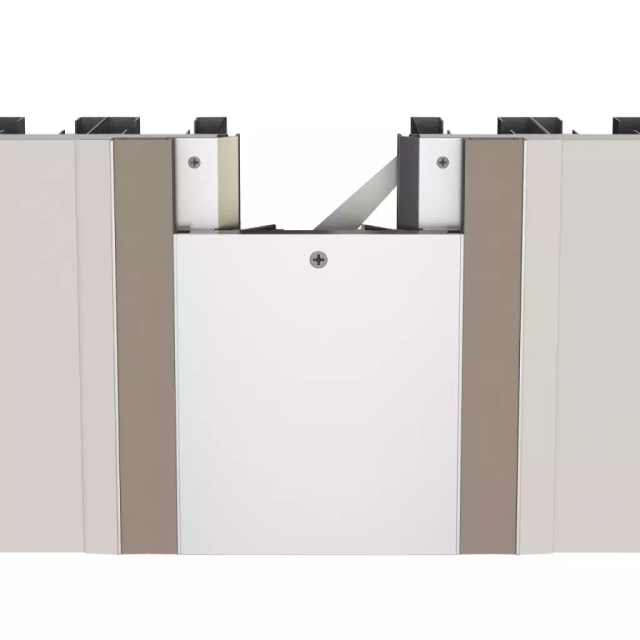

These flush, dual-gasket wall, and ceiling covers are ideal for interior applications with more extensive movement requirements. The gaskets lock into aluminum retainers, preventing hairline gaps and ensuring a hygienic seal. The cover plate can be painted to match surrounding finishes, and the gaskets are available in four standard color options. Joint sizes range from 5" to 16". Contact the factory for larger sizes or custom applications.

We’re here to help.

Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.

Live Chat

Product Sheet: SGW Series

View All Documents and Resources

Interested in this Product?

We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.

Request a Quote

We’re here to help.

Live Chat

Finishes

View:

Standard

Clear Anodize

Clear Anodize

Color Card

Kynar 500 and Hylar 5000

#532 Terra Cotta

#532 Terra Cotta
#581 Forge Red

#581 Forge Red
#584 Banner Red

#584 Banner Red
#585 Arabian Blue

#585 Arabian Blue
#580 Interstate Green

#580 Interstate Green
#537 Cordovan Brown

#537 Cordovan Brown
#546 Dark Bronze

#546 Dark Bronze
#543 Medium Bronze

#543 Medium Bronze
#548 Light Bronze

#548 Light Bronze
#563 Seawolf Gray

#563 Seawolf Gray
#521 Bone White

#521 Bone White
#518 Colonial White

#518 Colonial White
#516 Spanish White

#516 Spanish White
#572 Sand Beige

#572 Sand Beige
#519 Sandstone

#519 Sandstone
#559 Mushroom

#559 Mushroom
#562 Phantom Gray

#562 Phantom Gray
#560 Onyx Gray

#560 Onyx Gray
#549 Charcoal

#549 Charcoal
#512 Black

#512 Black

NOTES:

(Aluminum Covers Only – Not recommended for floor cover applications)

Color Card

Powder Coat Finishes

Medium Bronze

Medium Bronze
Dark Bronze

Dark Bronze
Black

Black

NOTES:

(Aluminum Covers Only – Not recommended for floor cover applications)

Color Card

Gasket Colors

#232 White

#232 White
#270 Greige

#270 Greige
#136 Gray

#136 Gray
#108 Black

#108 Black
#764 Platinum

#764 Platinum

Performance Data

SGW 500 - SGW 1600 Series

Model	Joint Width	Min Opening	Max Opening	Exposed Surface	Blockout Width	Blockout Height
SGW-500	5.00" (127 mm)	2.75" (70 mm)	8.75" (222 mm)	12.00" (305 mm)	3.50" (89 mm)	0.63" (16 mm)
SGW-600	6.00" (152 mm)	2.75" (70 mm)	9.25" (235 mm)	13.00" (330 mm)	3.50" (89 mm)	0.63" (16 mm)
SGW-700	7.00" (178 mm)	2.75" (70 mm)	11.75" (298 mm)	15.00" (381 mm)	4.00" (102 mm)	0.63" (16 mm)
SGW-800	8.00" (203 mm)	2.75" (70 mm)	12.75" (324 mm)	16.00" (406 mm)	4.00" (102 mm)	0.63" (16 mm)
SGW-900	9.00" (229 mm)	2.75" (70 mm)	14.13" (359 mm)	18.00" (457 mm)	4.50" (114 mm)	0.63" (16 mm)
SGW-1000	10.00" (254 mm)	2.75" (70 mm)	15.75" (400 mm)	19.00" (483 mm)	4.50" (114 mm)	0.63" (16 mm)
SGW-1100	11.00" (279 mm)	2.75" (70 mm)	17.75" (451 mm)	21.00" (533 mm)	5.00" (127 mm)	0.63" (16 mm)
SGW-1200	12.00" (305 mm)	2.75" (70 mm)	18.75" (476 mm)	22.00" (559 mm)	5.00" (127 mm)	0.63" (16 mm)
SGW-1300	13.00" (330 mm)	2.75" (70 mm)	20.75" (527 mm)	24.00" (610 mm)	5.50" (140 mm)	0.63" (16 mm)
SGW-1400	14.00" (356 mm)	2.75" (70 mm)	21.75" (552 mm)	25.00" (635 mm)	5.50" (140 mm)	0.63" (16 mm)
SGW-1500	15.00" (381 mm)	2.75" (70 mm)	22.75" (578 mm)	27.00" (686 mm)	6.00" (152 mm)	0.63" (16 mm)
SGW-1600	16.00" (406 mm)	2.75" (70 mm)	24.75" (629 mm)	28.00" (711 mm)	6.00" (152 mm)	0.63" (16 mm)

SGWC 500 - SGWC 1600 Series

Model	Joint Width	Min Opening	Max Opening	Exposed Surface	Blockout Width	Blockout Height
SGWC-500	5.00" (127 mm)	3.75" (95 mm)	6.75" (171 mm)	8.50" (216 mm)	3.50" (89 mm)	0.63" (16 mm)
SGWC-600	6.00" (152 mm)	4.25" (108 mm)	7.50" (191 mm)	9.50" (241 mm)	3.50" (89 mm)	0.63" (16 mm)
SGWC-700	7.00" (178 mm)	5.00" (127 mm)	9.25" (235 mm)	11.00" (279 mm)	4.00" (102 mm)	0.63" (16 mm)
SGWC-800	8.00" (203 mm)	5.50" (140 mm)	10.25" (260 mm)	12.00" (305 mm)	4.00" (102 mm)	0.63" (16 mm)
SGWC-900	9.00" (229 mm)	6.00" (152 mm)	11.50" (292 mm)	13.50" (343 mm)	4.50" (114 mm)	0.63" (16 mm)
SGWC-1000	10.00" (254 mm)	6.50" (165 mm)	12.75" (324 mm)	14.50" (368 mm)	4.50" (114 mm)	0.63" (16 mm)
SGWC-1100	11.00" (279 mm)	7.00" (178 mm)	14.25" (362 mm)	16.00" (406 mm)	5.00" (127 mm)	0.63" (16 mm)
SGWC-1200	12.00" (305 mm)	7.50" (191 mm)	15.25" (387 mm)	17.00" (432 mm)	5.00" (127 mm)	0.63" (16 mm)
SGWC-1300	13.00" (330 mm)	8.00" (203 mm)	16.75" (425 mm)	18.50" (470 mm)	5.50" (140 mm)	0.63" (16 mm)
SGWC-1400	14.00" (356 mm)	8.50" (216 mm)	17.75" (451 mm)	19.50" (495 mm)	5.50" (140 mm)	0.63" (16 mm)
SGWC-1500	15.00" (381 mm)	9.00" (229 mm)	18.75" (476 mm)	21.00" (533 mm)	6.00" (152 mm)	0.63" (16 mm)
SGWC-1600	16.00" (406 mm)	9.50" (241 mm)	20.25" (514 mm)	22.00" (559 mm)	6.00" (152 mm)	0.63" (16 mm)
