FWS (5" and Up)

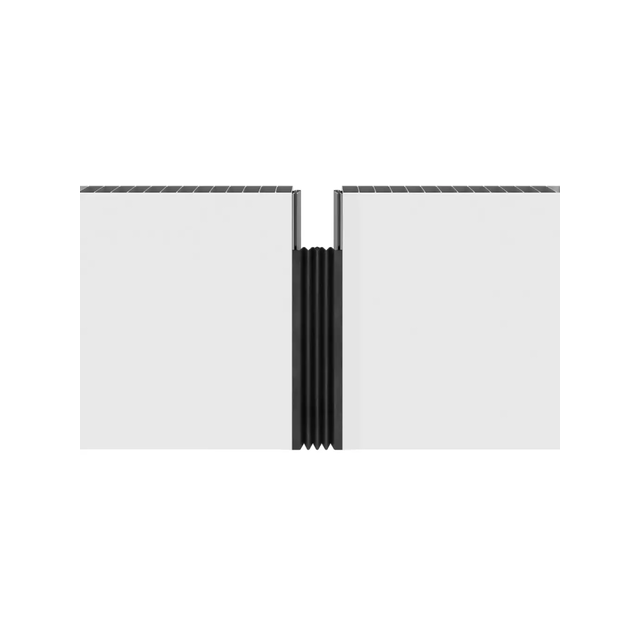

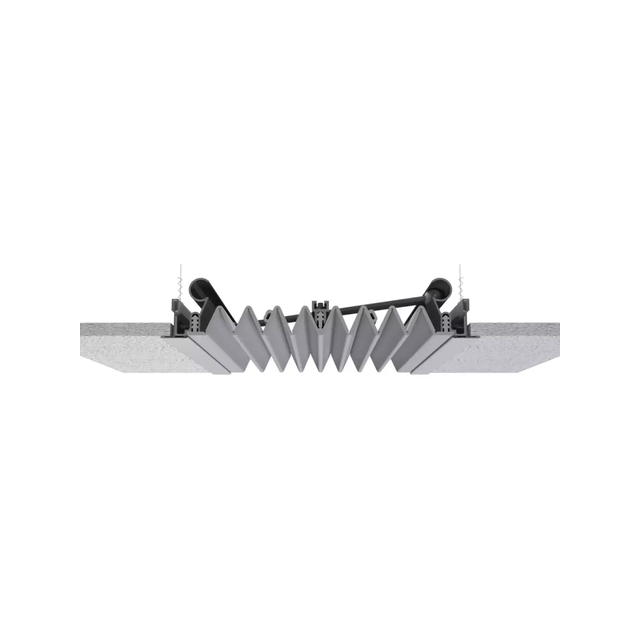

These flush, single gasket, serrated wall and ceiling covers are ideal for interior applications where minimal visual impact is preferred. The gasket edges lock into aluminum retainers to prevent hairline gaps and ensure a hygienic seal. The center section of the gasket is ribbed to allow for movement up to 200%. The gasket is available in five standard color options. Joint sizes range from 5" to 10". Contact the factory for larger sizes or custom applications.
We’re here to help.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.
Finishes
-
Mill
Expansion Joint Standard Finish
-
#232 White
-
#270 Greige
-
#136 Gray
-
#108 Black
-
#764 Platinum
Gasket Colors
Performance Data
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| FWS-500 | 5.00" (127 mm) | 1.75" (44 mm) | 10.00" (254 mm) | 5.00" (127 mm) | N/A | N/A |
| FWS-600 | 6.00" (152 mm) | 1.75" (44 mm) | 12.00" (305 mm) | 6.00" (152 mm) | N/A | N/A |
| FWS-700 | 7.00" (178 mm) | 2.50" (64 mm) | 14.00" (356 mm) | 7.00" (178 mm) | N/A | N/A |
| FWS-800 | 8.00" (203 mm) | 2.50" (64 mm) | 16.00" (406 mm) | 8.00" (203 mm) | N/A | N/A |
| FWS-900 | 9.00" (229 mm) | 2.50" (64 mm) | 18.00" (457 mm) | 9.00" (229 mm) | N/A | N/A |
| FWS-1000 | 10.00" (254 mm) | 2.50" (64 mm) | 20.00" (508 mm) | 10.00" (254 mm) | N/A | N/A |
| FWSC-500 | 5.00" (127 mm) | 1.75" (44 mm) | 10.00" (254 mm) | 5.00" (127 mm) | N/A | N/A |
| FWSC-600 | 6.00" (152 mm) | 1.75" (44 mm) | 12.00" (305 mm) | 6.00" (152 mm) | N/A | N/A |
| FWSC-700 | 7.00" (178 mm) | 2.50" (64 mm) | 14.00" (356 mm) | 7.00" (178 mm) | N/A | N/A |
| FWSC-800 | 8.00" (203 mm) | 2.50" (64 mm) | 16.00" (406 mm) | 8.00" (203 mm) | N/A | N/A |
| FWSC-900 | 9.00" (229 mm) | 2.50" (64 mm) | 18.00" (457 mm) | 9.00" (229 mm) | N/A | N/A |
| FWSC-1000 | 10.00" (254 mm) | 2.50" (64 mm) | 20.00" (508 mm) | 10.00" (254 mm) | N/A | N/A |
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| FWS-500M | 5.00" (127 mm) | 1.75" (44 mm) | 10.00" (254 mm) | 5.00" (127 mm) | N/A | N/A |
| FWS-600M | 6.00" (152 mm) | 1.75" (44 mm) | 12.00" (305 mm) | 6.00" (152 mm) | N/A | N/A |
| FWS-700M | 7.00" (178 mm) | 2.50" (64 mm) | 14.00" (356 mm) | 7.00" (178 mm) | N/A | N/A |
| FWS-800M | 8.00" (203 mm) | 2.50" (64 mm) | 16.00" (406 mm) | 8.00" (203 mm) | N/A | N/A |
| FWS-900M | 9.00" (229 mm) | 2.50" (64 mm) | 18.00" (457 mm) | 9.00" (229 mm) | N/A | N/A |
| FWS-1000M | 10.00" (254 mm) | 2.50" (64 mm) | 20.00" (508 mm) | 10.00" (254 mm) | N/A | N/A |
| FWSC-500M | 5.00" (127 mm) | 1.75" (44 mm) | 10.00" (254 mm) | 5.00" (127 mm) | N/A | N/A |
| FWSC-600M | 6.00" (152 mm) | 1.75" (44 mm) | 12.00" (305 mm) | 6.00" (152 mm) | N/A | N/A |
| FWSC-700M | 7.00" (178 mm) | 2.50" (64 mm) | 14.00" (356 mm) | 7.00" (178 mm) | N/A | N/A |
| FWSC-800M | 8.00" (203 mm) | 2.50" (64 mm) | 16.00" (406 mm) | 8.00" (203 mm) | N/A | N/A |
| FWSC-900M | 9.00" (229 mm) | 2.50" (64 mm) | 18.00" (457 mm) | 9.00" (229 mm) | N/A | N/A |
| FWSC-1000M | 10.00" (254 mm) | 2.50" (64 mm) | 20.00" (508 mm) | 10.00" (254 mm) | N/A | N/A |
