FCF (3" and Up)

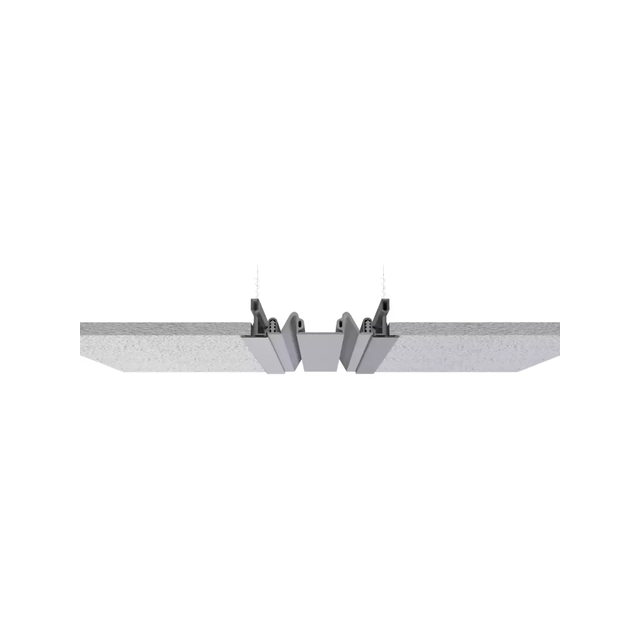

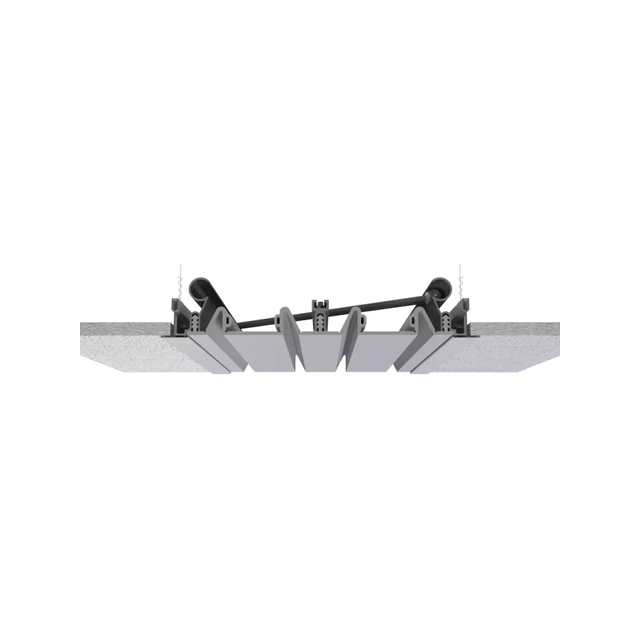

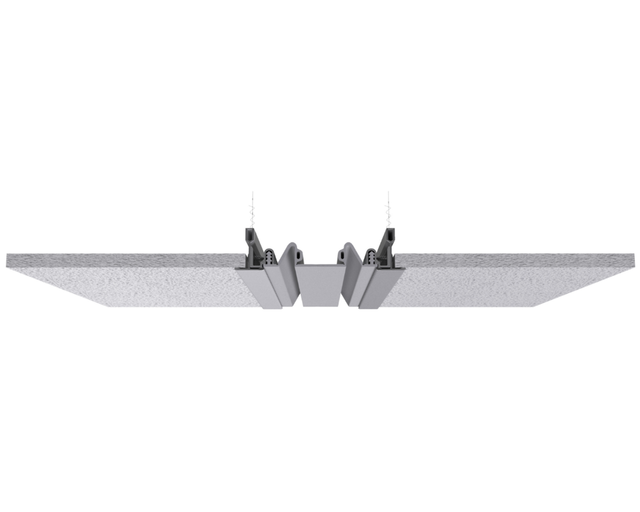

This flush, gasketed ceiling cover is designed for interior applications, offers minimal exposed surfaces, and can accommodate thermal and seismic movements. The gasket is available in four standard color options. Joint sizes range from 3" to 10". Contact the factory for larger sizes or custom applications.

We’re here to help.

Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.

Product Sheet: FCF Series

View All Documents and Resources

Interested in this Product?

You're in luck - this product is in-stock and available online. Click Buy Online below to get started.

If you have questions or would like additional information, contact us by requesting a quote below and we will get in touch with you shortly. Additional finishes and colors are available, request a quote if your preferred color is not available to buy online.

Request a Quote Buy Online Request a Sample

We’re here to help.

Live Chat

FCF (3" & 4") Ceiling Joint Cover System - 2 Pack

Starting Price: $352.66

This item typically ships in 3 days.

Documents

Installation Instructions: For FCS/FCSC 2" - 4" and FCF/FCFC 3" - 5" Installation Instructions: FCS/FCSC 5" - 10" andFCF/FCFC 600 through 1000

1. Select Joint Width
3"

Inches

2 . Select Gasket Color
232 White

#232 White

Order Samples

3 . Select Accessories
No Accessories

No Accessories

Gasket Splice Kit

Price:$5.09

Splice kit for select gasket models includes enough material for one splice.

Included in the box: Splice pins, 3M Scotch-Weld Adhesive and enough fab tape for one splice. Compatible with SF 2" - 4" and FCF & FWF 3" - 4" systems.

View Product Page

Quantity:

.025 Scalloped Knife Blade

Price:$6.70

This scalloped knife blade is recommended for cutting gasket seals. Available to buy now, 1 blade per pack.

Included in the box: One .025" scalloped knife blade

View Product Page

Quantity:

Selected Configuration:

Color

232 White

Joint Width

Selected Accessories:

No Accessories

Quantity:

Price:

Configured Price
$352.66 Accessories Total
$0.00 TOTAL
$352.66

Please confirm your selection(s) above are correct.

Documents

Installation Instructions: For FCS/FCSC 2" - 4" and FCF/FCFC 3" - 5" Installation Instructions: FCS/FCSC 5" - 10" andFCF/FCFC 600 through 1000

Added to Cart

FCF (3" and Up)

Color:

232 White

Qty:

Price:

Finishes

View:

Expansion Joint Standard Finish

Mill

Mill

Color Card

Gasket Colors

#232 White

#232 White
#270 Greige

#270 Greige
#136 Gray

#136 Gray
#108 Black

#108 Black
#764 Platinum

#764 Platinum

Performance Data

FCF 300 - FCFC 600 Series

Model	Joint Width	Min. Opening	Max. Opening	Exposed Surface	Blockout Width	Blockout Height
FCF-300	3.00" (76mm)	1.25" (32mm)	4.50" (114mm)	3.00" (76mm)	N/A	N/A
FCF-400	4.00" (102mm)	1.25" (32mm)	6.00" (152mm)	4.00" (102mm)	N/A	N/A
FCF-500	5.00" (127mm)	1.25" (32mm)	7.50" (191mm)	5.00" (127mm)	N/A	N/A
FCF-600	6.00" (152mm)	1.75" (44mm)	9.00" (229mm)	6.00" (152mm)	N/A	N/A
FCFC-300	3.00" (76mm)	1.25" (32mm)	4.50" (114mm)	3.00" (76mm)	N/A	N/A
FCFC-400	4.00" (102mm)	1.25" (32mm)	6.00" (152mm)	4.00" (102mm)	N/A	N/A
FCFC-500	5.00" (127mm)	1.25" (32mm)	7.50" (191mm)	5.00" (127mm)	N/A	N/A
FCFC-600	6.00" (152mm)	1.75" (44mm)	9.00" (229mm)	6.00" (152mm)	N/A	N/A

FCF 700 - FCFC 1000 Series

Model	Joint Width	Min. Opening	Max. Opening	Exposed Surface	Blockout Width	Blockout Height
FCF-700	7.00" (178mm)	2.50" (64mm)	10.50" (267mm)	7.00" (178mm)	N/A	N/A
FCF-800	8.00" (203mm)	2.50" (64mm)	12.00" (305mm)	8.00" (203mm)	N/A	N/A
FCF-900	9.00" (229mm)	2.50" (64mm)	13.50" (343mm)	9.00" (229mm)	N/A	N/A
FCF-1000	10.00" (254mm)	2.50" (64mm)	15.00" (381mm)	10.00" (254mm)	N/A	N/A
FCFC-700	7.00" (178mm)	2.50" (64mm)	10.50" (267mm)	7.00" (178mm)	N/A	N/A
FCFC-800	8.00" (203mm)	2.50" (64mm)	12.00" (305mm)	8.00" (203mm)	N/A	N/A
FCFC-900	9.00" (229mm)	2.50" (64mm)	13.50" (343mm)	9.00" (229mm)	N/A	N/A
FCFC-1000	10.00" (254mm)	2.50" (64mm)	15.00" (381mm)	10.00" (254mm)	N/A	N/A
