ALHD

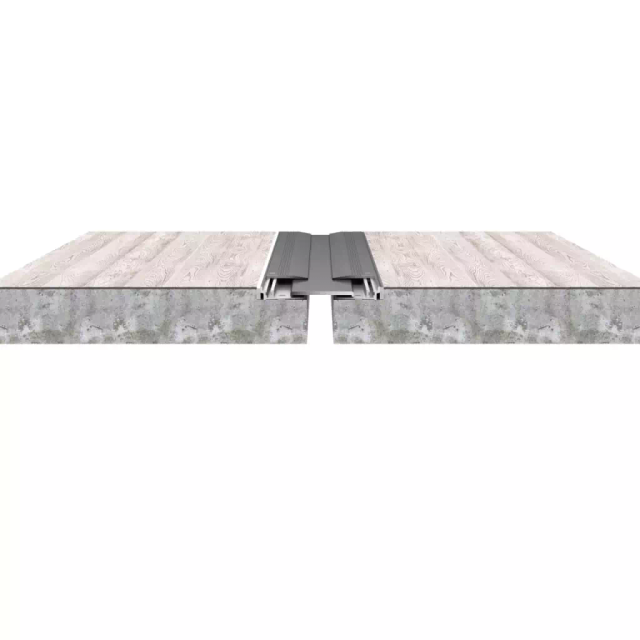

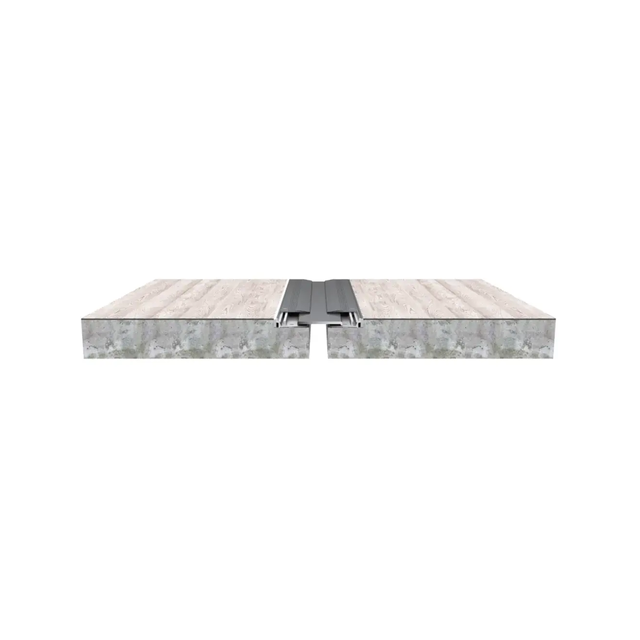

This recessed metal floor cover is designed for interior and exterior applications where low maintenance and heavy-duty rolling loads are expected. The free-floating aluminum center plate spans the joint and slides between frame assemblies to allow movement when required. Joint sizes range from 1" to 4". Contact the factory for larger sizes or custom applications.
We’re here to help.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.
Finishes
View:
-
Mill
Expansion Joint Standard Finish
Performance Data
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| AL-100HD | 1.00" (25 mm) | 0.00" (0 mm) | 2.00" (51 mm) | 6.25" (159 mm) | 2.88" (73 mm) | 1.00" (25 mm) |
| AL-200HD | 2.00" (51 mm) | 0.00" (0 mm) | 4.00" (102 mm) | 9.00" (229 mm) | 3.75" (95 mm) | 1.00" (25 mm) |
| AL-300HD | 3.00" (76 mm) | 0.25" (6 mm) | 5.75" (146 mm) | 12.50" (318 mm) | 5.00" (127 mm) | 1.00" (25 mm) |
| AL-400HD | 4.00" (102 mm) | 1.25" (32 mm) | 6.75" (171 mm) | 12.50" (318 mm) | 4.50" (114 mm) | 1.00" (25 mm) |
| ALW-100HD | 1.00" (25 mm) | 0.63" (16 mm) | 1.63" (41 mm) | 3.63" (92 mm) | 2.88" (73 mm) | 1.00" (25 mm) |
| ALW-200HD | 2.00" (51 mm) | 0.88" (22 mm) | 3.13" (80 mm) | 5.50" (140 mm) | 3.75" (95 mm) | 1.00" (25 mm) |
| ALW-300HD | 3.00" (76 mm) | 1.13" (29 mm) | 4.13" (105 mm) | 7.75" (197 mm) | 5.00" (127 mm) | 1.00" (25 mm) |
| ALW-400HD | 4.00" (102 mm) | 2.13" (54 mm) | 5.13" (130 mm) | 8.25" (210 mm) | 4.50" (114 mm) | 1.00" (25 mm) |
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| AL-100HDM | 1.00" (25 mm) | 0.13" (3 mm) | 2.25" (57 mm) | 8.75" (222 mm) | 4.75" (121 mm) | 0.75" (19 mm) |
| AL-200HDM | 2.00" (51 mm) | 0.63" (16 mm) | 3.25" (83 mm) | 9.25" (235 mm) | 4.25" (108 mm) | 0.75" (19 mm) |
| AL-300HDM | 3.00" (76 mm) | 1.35" (34 mm) | 4.34" (110 mm) | 10.25" (260 mm) | 4.25" (108 mm) | 0.75" (19 mm) |
| AL-400HDM | 4.00" (102 mm) | 2.35" (60 mm) | 5.34" (136 mm) | 11.25" (286 mm) | 4.25" (108 mm) | 0.75" (19 mm) |
