PTCP

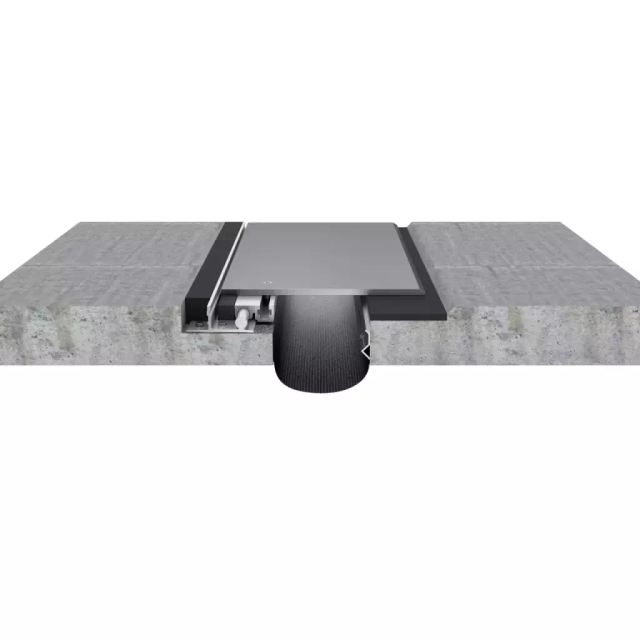

This seismic floor cover is specifically designed for parking structure applications. An additional dampening system prevents the cover from clunking noisily under dynamic traffic loads. These systems are designed to accommodate seismic and live load movements, including vertical deflection of the adjacent floor slab. Joint sizes range from 6" to 16". Contact the factory for larger sizes or custom applications.
We’re here to help.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our in-stock products, which include our most popular models and colors that are easy to buy online.
Finishes
View:
-
Mill
Expansion Joint Standard Finish
Performance Data
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| PTCP-600 | 6.00" (152 mm) | 0.63" (16 mm) | 9.50" (241 mm) | 15.63" (397 mm) | 5.00" (127 mm) | 1.06" (27 mm) |
| PTCP-700 | 7.00" (178 mm) | 0.63" (16 mm) | 11.00" (279 mm) | 17.13" (435 mm) | 5.50" (140 mm) | 1.06" (27 mm) |
| PTCP-800 | 8.00" (203 mm) | 0.63" (16 mm) | 12.50" (318 mm) | 18.63" (473 mm) | 6.00" (152 mm) | 1.06" (27 mm) |
| PTCP-900 | 9.00" (229 mm) | 0.63" (16 mm) | 14.00" (356 mm) | 20.13" (511 mm) | 6.50" (165 mm) | 1.06" (27 mm) |
| PTCP-1000 | 10.00" (254 mm) | 0.63" (16 mm) | 15.50" (394 mm) | 21.63" (549 mm) | 7.00" (178 mm) | 1.06" (27 mm) |
| PTCP-1100 | 11.00" (279 mm) | 0.63" (16 mm) | 17.00" (432 mm) | 23.13" (588 mm) | 7.50" (191 mm) | 1.06" (27 mm) |
| PTCP-1200 | 12.00" (305 mm) | 0.63" (16 mm) | 18.50" (470 mm) | 24.63" (626 mm) | 8.00" (203 mm) | 1.06" (27 mm) |
| PTCP-1300 | 13.00" (330 mm) | 0.63" (16 mm) | 20.00" (508 mm) | 26.13" (664 mm) | 8.50" (216 mm) | 1.06" (27 mm) |
| PTCP-1400 | 14.00" (356 mm) | 0.63" (16 mm) | 21.50" (546 mm) | 27.63" (702 mm) | 9.00" (229 mm) | 1.06" (27 mm) |
| PTCP-1500 | 15.00" (381 mm) | 0.63" (16 mm) | 23.00" (584 mm) | 29.13" (740 mm) | 9.50" (241 mm) | 1.06" (27 mm) |
| PTCP-1600 | 16.00" (406 mm) | 0.63" (16 mm) | 24.50" (622 mm) | 30.63" (778 mm) | 10.00" (254 mm) | 1.06" (27 mm) |
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| PTCPW-600 | 6.00" (152 mm) | 0.63" (16 mm) | 9.50" (241 mm) | 11.00" (279 mm) | 5.00" (127 mm) | 1.06" (27 mm) |
| PTCPW-700 | 7.00" (178 mm) | 0.63" (16 mm) | 11.00" (279 mm) | 12.50" (318 mm) | 5.50" (140 mm) | 1.06" (27 mm) |
| PTCPW-800 | 8.00" (203 mm) | 0.63" (16 mm) | 12.50" (318 mm) | 14.00" (356 mm) | 6.00" (152 mm) | 1.06" (27 mm) |
| PTCPW-900 | 9.00" (229 mm) | 0.63" (16 mm) | 14.00" (356 mm) | 15.50" (394 mm) | 6.50" (165 mm) | 1.06" (27 mm) |
| PTCPW-1000 | 10.00" (254 mm) | 0.63" (16 mm) | 15.50" (394 mm) | 17.00" (432 mm) | 7.00" (178 mm) | 1.06" (27 mm) |
| PTCPW-1100 | 11.00" (279 mm) | 0.63" (16 mm) | 17.00" (432 mm) | 18.50" (470 mm) | 7.50" (191 mm) | 1.06" (27 mm) |
| PTCPW-1200 | 12.00" (305 mm) | 0.63" (16 mm) | 18.50" (470 mm) | 20.00" (508 mm) | 8.00" (203 mm) | 1.06" (27 mm) |
| PTCPW-1300 | 13.00" (330 mm) | 0.63" (16 mm) | 20.00" (508 mm) | 21.50" (546 mm) | 8.50" (216 mm) | 1.06" (27 mm) |
| PTCPW-1400 | 14.00" (356 mm) | 0.63" (16 mm) | 21.50" (546 mm) | 23.00" (584 mm) | 9.00" (229 mm) | 1.06" (27 mm) |
| PTCPW-1500 | 15.00" (381 mm) | 0.63" (16 mm) | 23.00" (584 mm) | 24.50" (622 mm) | 9.50" (241 mm) | 1.06" (27 mm) |
| PTCPW-1600 | 16.00" (406 mm) | 0.63" (16 mm) | 24.50" (622 mm) | 26.00" (660 mm) | 10.00" (254 mm) | 1.06" (27 mm) |
